VFD1100C43A | 110kW, 220A, 3 phase, 380V+15%, 50HZ/60HZ

-15%

VFD1100C43A | 110kW, 220A, 3 phase, 380V+15%, 50HZ/60HZ

Original price was: EGP247,882.Current price is: EGP210,700.

In stock

SKU: VFD1100C43A Category:
  • Series: VFD-C2000
  • 150 HP
  • 110 KW
  • 460 V
  • 209 A
Delta

Description

The VFD-C2000 series is a high performance FOC (Field Oriented Control) AC drive. This drive is extremely versatile with a real built-in PLC, numerous control options, over 300 parameters, predesigned application features, and a large LCD HMI keypad. These features coupled with input voltages of 230/460vac and a HP range of 1-800 make the C2000 a product for markets around the globe.

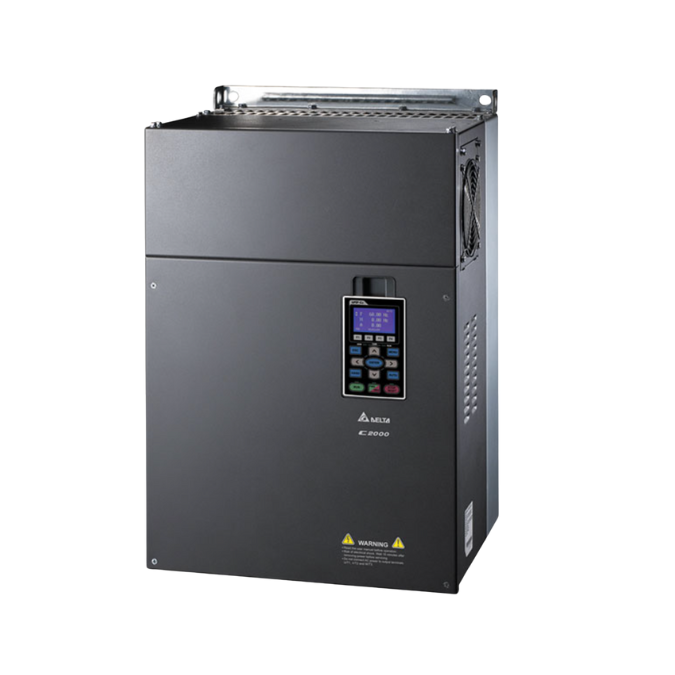

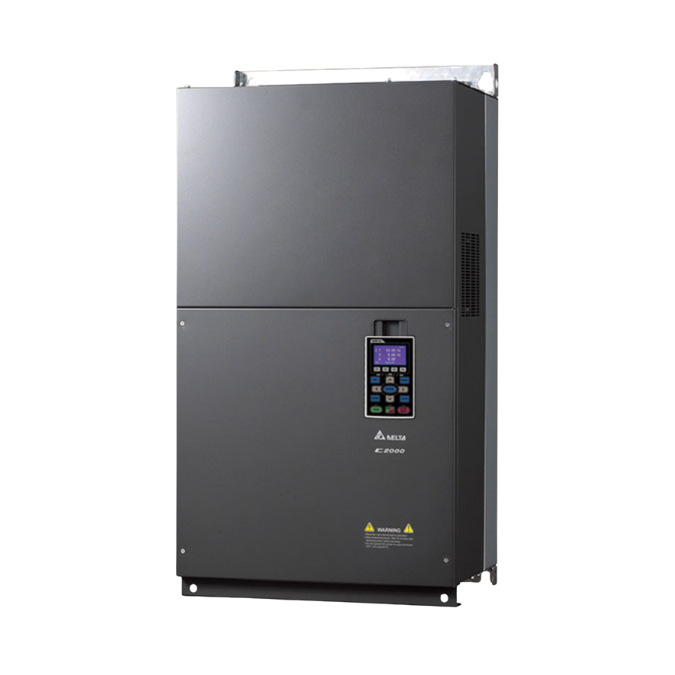

Delta VFD1100C43A

Brand

Delta

Specifications


Item Number: VFD1100C43A
Manufacturer: Delta Products
Item Category: Drive
Subcategory: AC
Series: C2000
Nominal Input VAC: 460 Volts AC
Input Range VAC: 323 to 528 Volts AC
Amps (CT): 209 Amps
HP (VT): 150 Horsepower
Amps (VT): 220 Amps
Input Phase: 3
Operator Controls: Keypad Included
Braking Type: DC Injection;Dynamic Braking;AC Line Regenerative
Motor Control-Max Level: Closed Loop Vector
Closed Loop: Yes
AC Line Regenerative?: Yes
Dynamic Braking Trans?: Optional (External)
Frame Size: E
Height: 28.18 Inches
Width: 14.57 Inches
